Высокая отражательная способность до 500 кд/лк/м².
особенность:
Печатный, прочный, устойчивый к воздействию погоды
Упаковывая детали:
1 рулон/коробка
Поставка способности:
10000 кренов/месяц
Выделить:
Printable Diamond Grade Reflective Sheeting
,
High Reflectivity Reflective Sheeting
,
Micro Prismatic Diamond Reflective Sheeting
Описание продукта
Diamond-Grade Reflective Sheeting for Road Safety
The LZT9800 Diamond Grade Reflective Sheeting series offers an industry-leading reflective solution engineered for maximum conspicuity and long-term performance in critical road safety applications. Utilizing advanced full-cube prismatic optics, this material delivers exceptionally high retroreflectivity, uniform brightness at wide observation angles, and outstanding durability—making it the preferred choice for highway, freeway and high-risk signage where visibility can be lifesaving.
Key Technology and Standards
Reflective Technology: Full-Cube Prismatic – the precision-engineered prismatic structure returns light to drivers more efficiently than conventional micro-prismatic or glass-bead films
Specifications Met: ETA Class 3 and ASTM D4956 Type XI – confirming superior retroreflective performance
Type of Adhesive: Pressure-Sensitive Adhesive (PSA) – provides strong, reliable bonding to common sign substrates
Imaging & Printability
Digital print, electronic cutting, and screen printing – the Diamond Grade Reflective Sheeting accepts a wide range of fabrication techniques so signs can be produced with precise graphics, vivid colors, and long-lasting legends. Its surface is optimized for sharp, high-contrast output while preserving reflective performance.
Color & Specification Options

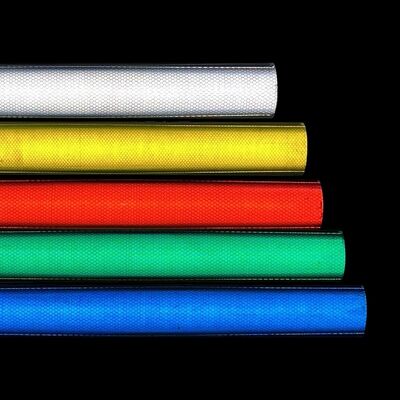

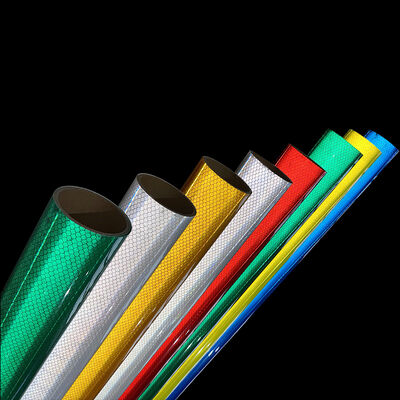

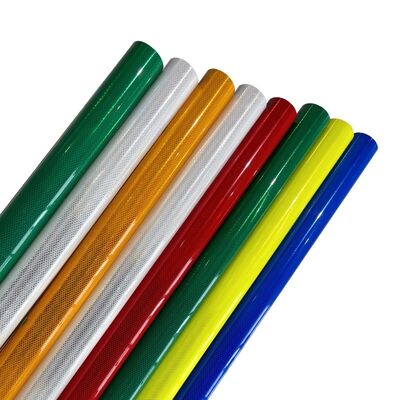

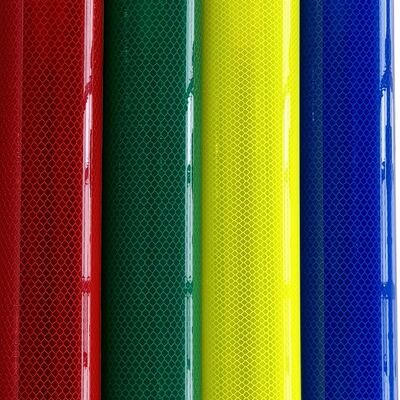

Available Colors: White, Yellow, Red, Green, Blue, Orange, Brown, and Lime Green Yellow
Standard Roll Size: 1.22 m × 45.72 m (4 ft × 150 ft) or customized widths and lengths
Operating Temperature: 18°C-28°C – recommended application temperature for optimal adhesion
Primary Applications
Highways and Freeways: Specifically tailored for high-speed environments where early detection improves reaction time
Work Zones and Construction Areas: Superior reflectivity makes temporary and permanent work zone signs more conspicuous
Warning Signs and Critical Traffic Control: Ensures safety messages remain clear day and night
Performance Advantages
Exceptional Retroreflectivity for greater visibility at longer distances
Wide Angle Visibility maintains consistent brightness at steep viewing angles
Long Service Life reduces replacement frequency and lifecycle costs
Fabrication Friendly with common sign manufacturing processes
Reliable Adhesion to aluminum and other professional signmaking substrates
About LU Reflective Sheeting Manufacturers
Since 1998, Anhui Lu Zheng Tong New Material Technology Co., Ltd. has specialized in R&D, production, sales and service of reflective materials and safety products. LU brand products include reflective sheeting, vehicle reflective tapes, marine SOLAS reflective tapes, photoluminescent films, glow in the dark tapes, and reflective traffic signs.
With ISO 90001, 3C, E-mark ECE104, DOT-C2, Intertek certifications and over 20+ patents, our products are exported worldwide. Our 13,000 m² production base features automatic production lines, advanced equipment, and complete quality inspection systems to provide excellent quality and stable production capacity.
Technical Support & Services
We provide full technical support including installation guidance, application recommendations, performance consultation, product testing, customization support, and professional training to meet specific project requirements.
Packing & Shipping
Packaging: Each roll is packed in sturdy cardboard cartons with protective plastic wrapping to prevent scratches and transit damage. Custom packaging services available.
Shipping: Shipped via ground transportation with costs calculated based on destination and weight. Tracking information provided after dispatch.
